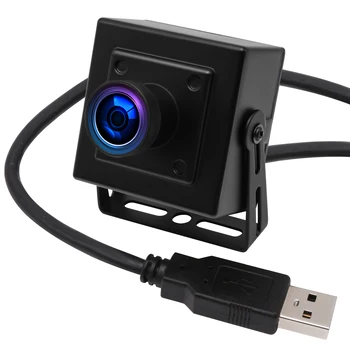

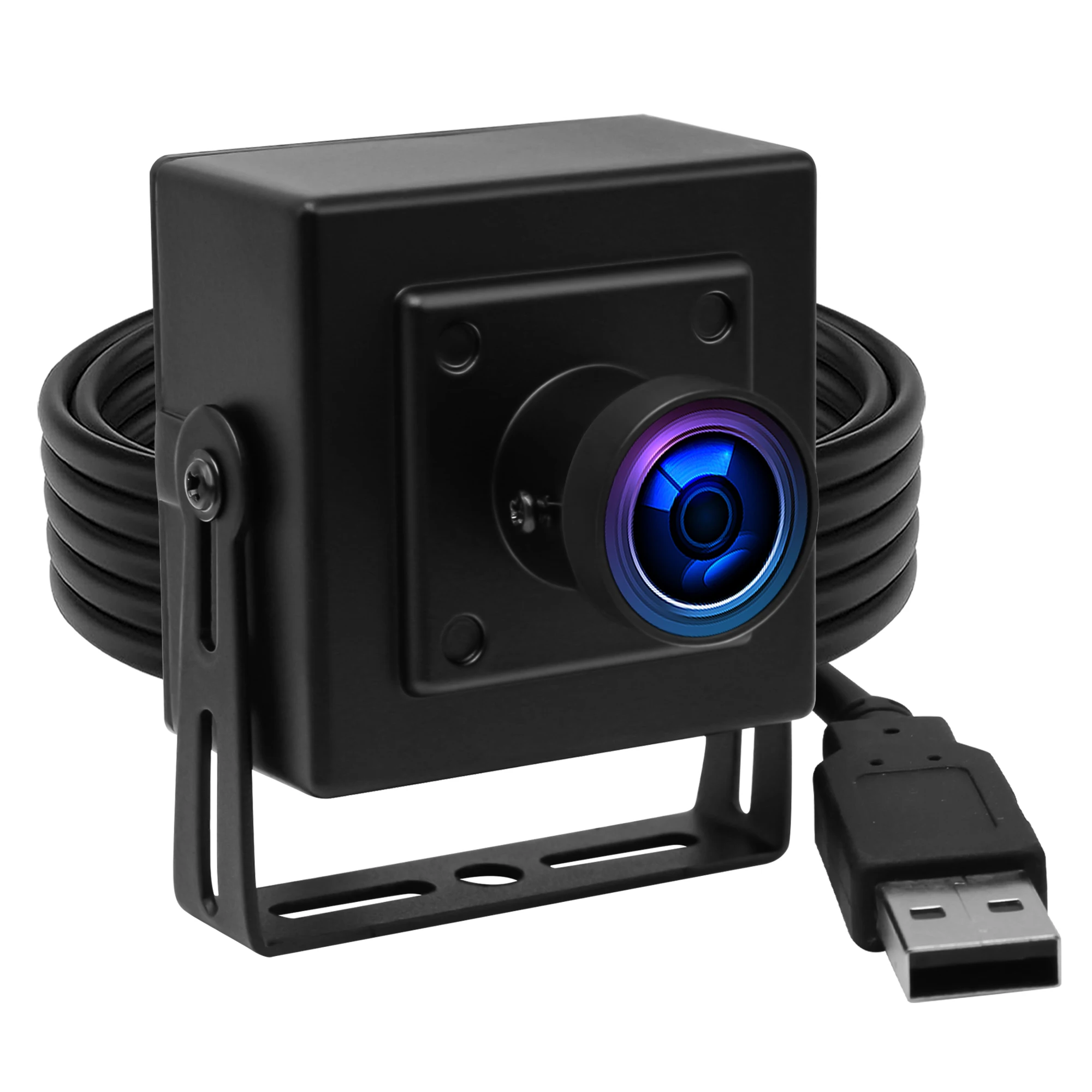

170 degree fisheye lens wide angle mini hd endoscope usb camera 1080p ELP-USBFHD01M-BL170

The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial

machine monitoring and toys. It use high quality image sensors made by OmniVision,

one of the world leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

*CMOS 1080P OV2710 sensor for high quality image and low power consumption.

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance – ideal for any lighting condition.

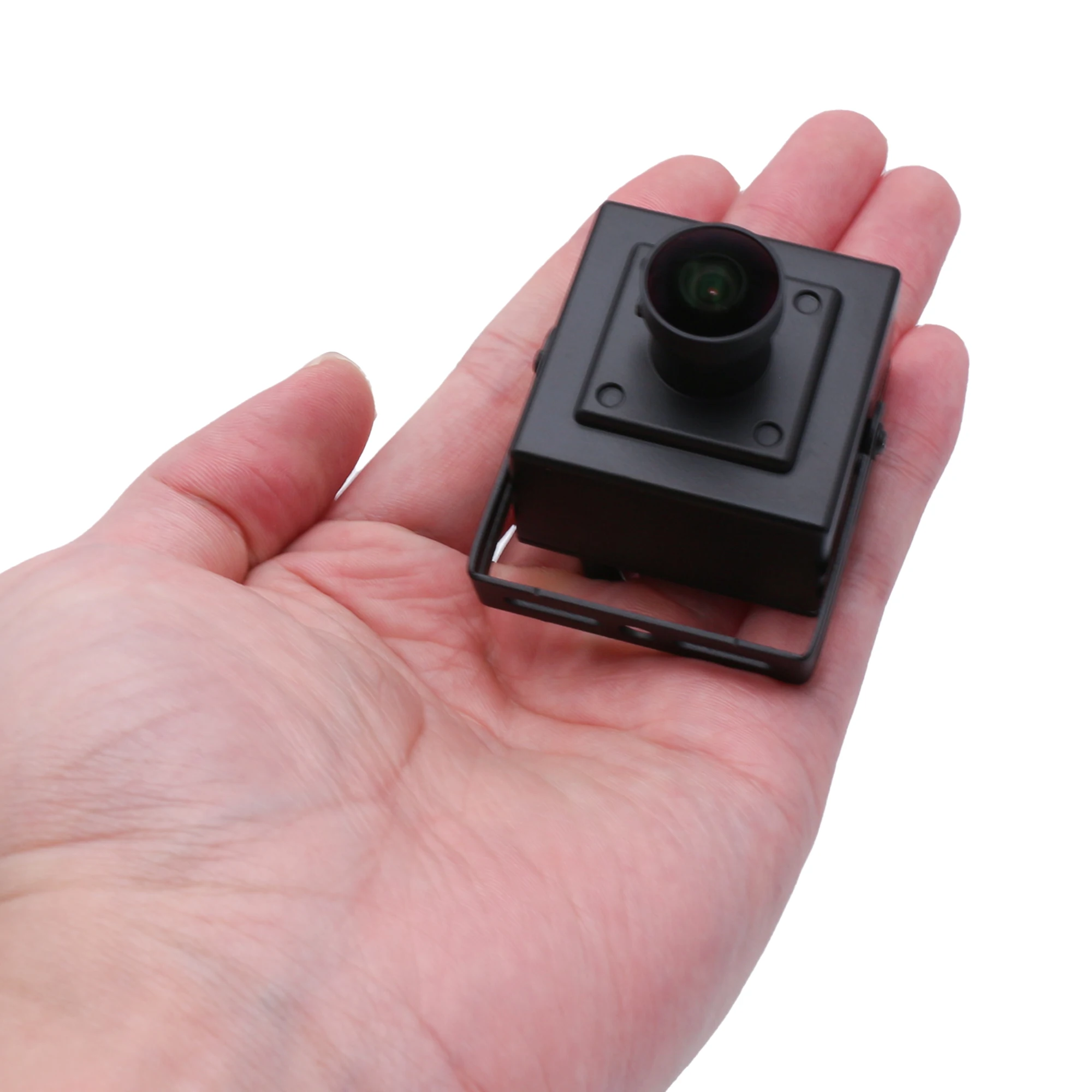

*Super small outline 38*38mm and thin profile for embedded applications.

*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.

*High quality lens, true and undistorted color image.

*Low power consumption – ideal for portable equipment.

*UVC for use in Android, Linux, Windows ,  MAC, SP2 or above.

*Camera with UVC.

Optional models

  ELP-USBFHD01M-BL170

Sensor

 1/2.7″ CMOS OV2710

Lens size

 200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

 1920X1080

Picture format

 MJPEG

USB Protocal

 USB2.0 HS/FS, USB1.1 FS

Support free driver

 USB Video Class(UVC)1.1

Auto exposure AEC

 Support

Auto white blance AEB

 Support

Frame rate

 1920 (H) x 1080 (V) pixels     MJPEG 30fps       YUY2 6fps
 1280 (H) x 1024 (V) pixels     MJPEG 30fps       YUY2 6fps
 1280 (H) x  720 (V) pixels     MJPEG 60fps       YUY2 9fps
 1024 (H) x  768 (V) pixels     MJPEG 30fps       YUY2 9fps
 800 (H)   x  600 (V) pixels    MJPEG 60fps      YUY2 21fps
 640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps
 352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps
 320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps

Adjustable parameters

 Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

with IR cut & IR LED board

view angle

 30-185 degree optional

voltage

 DC 5V

current

 150mA

work temperature

 DEGREES(-20~70)

Size

 32x32mm/38*38

Support OS

 WinXP/Vista/WIN7/WIN8 /Linux with UVC
 Mac-OS X 10.4.8 or later Wince with UVC,  Android 4.0 or above

With 1/2.7″ CMOS OV2710 Sensor

With 170 degree fisheyelens (Many other lens optional)

Standard 3m USB Cable (1m, 2m, 3m, 5m optional)

Full HD 1080P webcam, Resolution 1920×1080

UVC USB Camera, Free driver Plug & Play

High Speed USB 2.0 Camera, High FPS

1920×1080 Mjpeg 30FPS

1280x720P Mjpeg 60FPS

640X480 Mjpeg 100FPS

Mini 41*41 box size for PC camera interface,equipped with 3meters USB cable for wider range of usage.

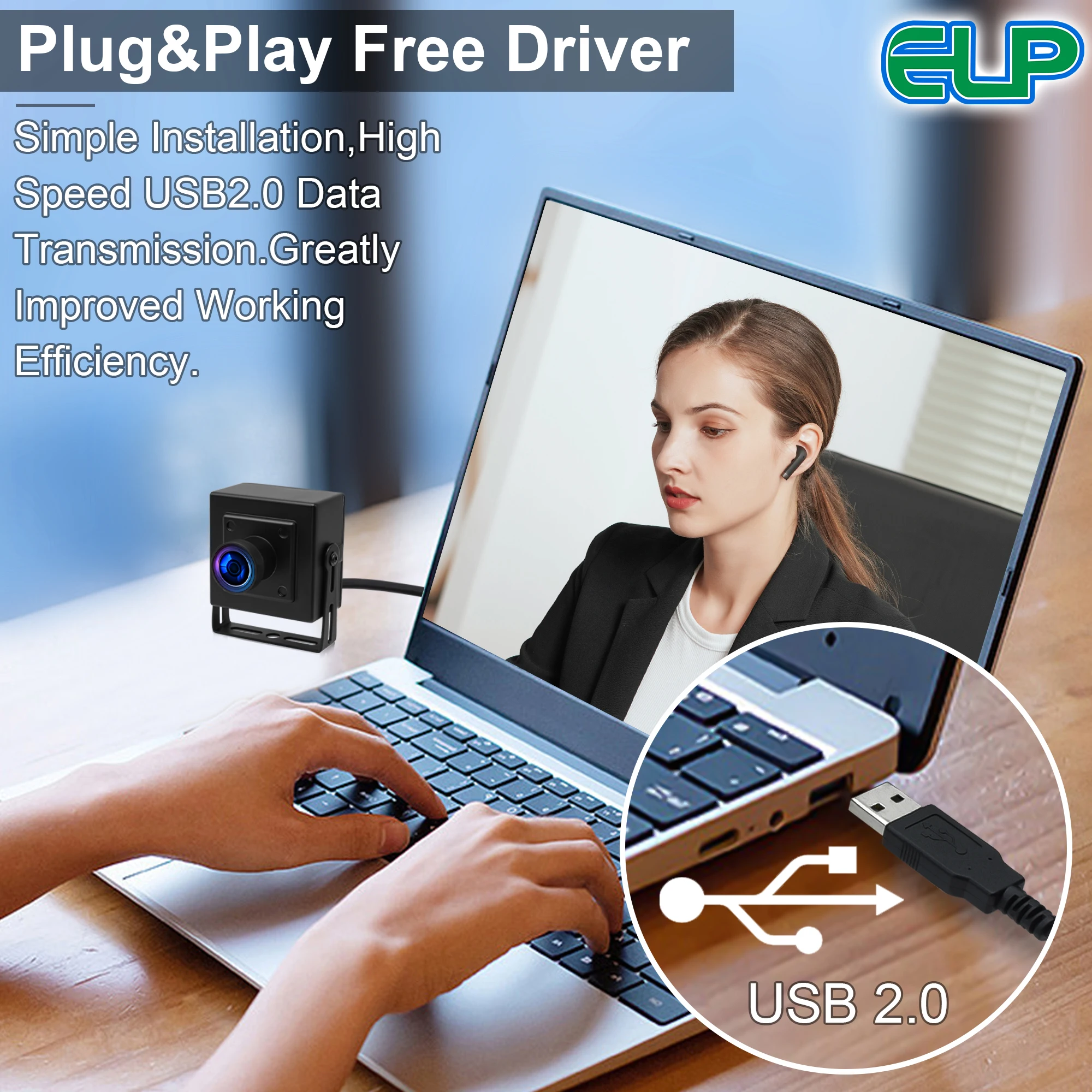

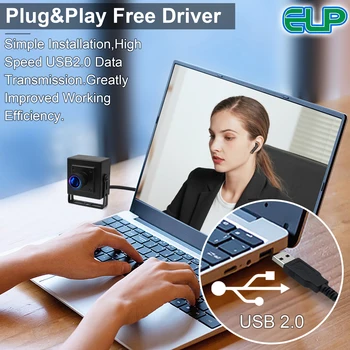

Plug and play/Free Driver

UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed

Mini USB camera with metal case for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

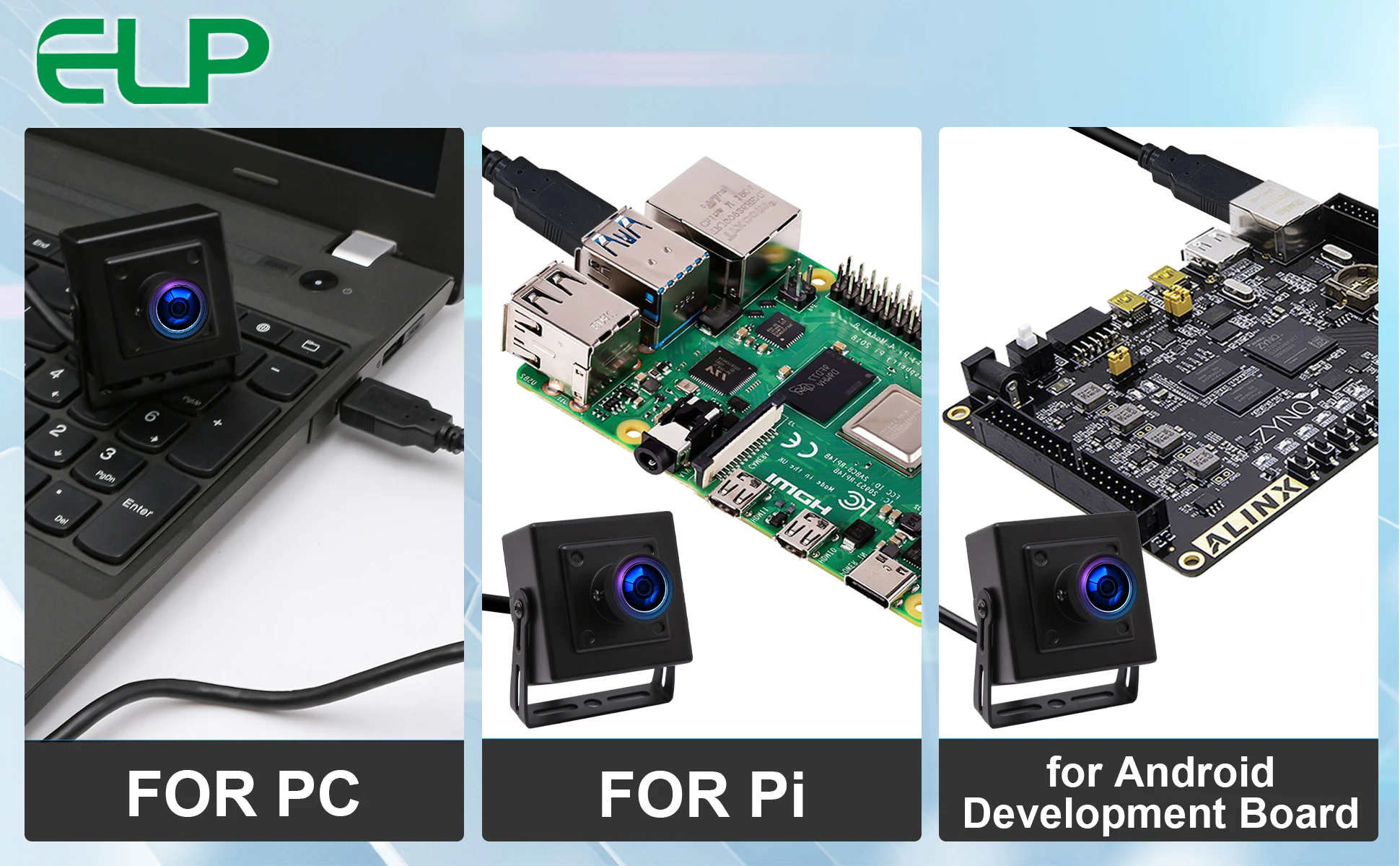

FOR PC Support windows,linux,mac,Android,raspberry Pi
FOR PI Support Raspberry Pi development board,Jetson Nano,etc.

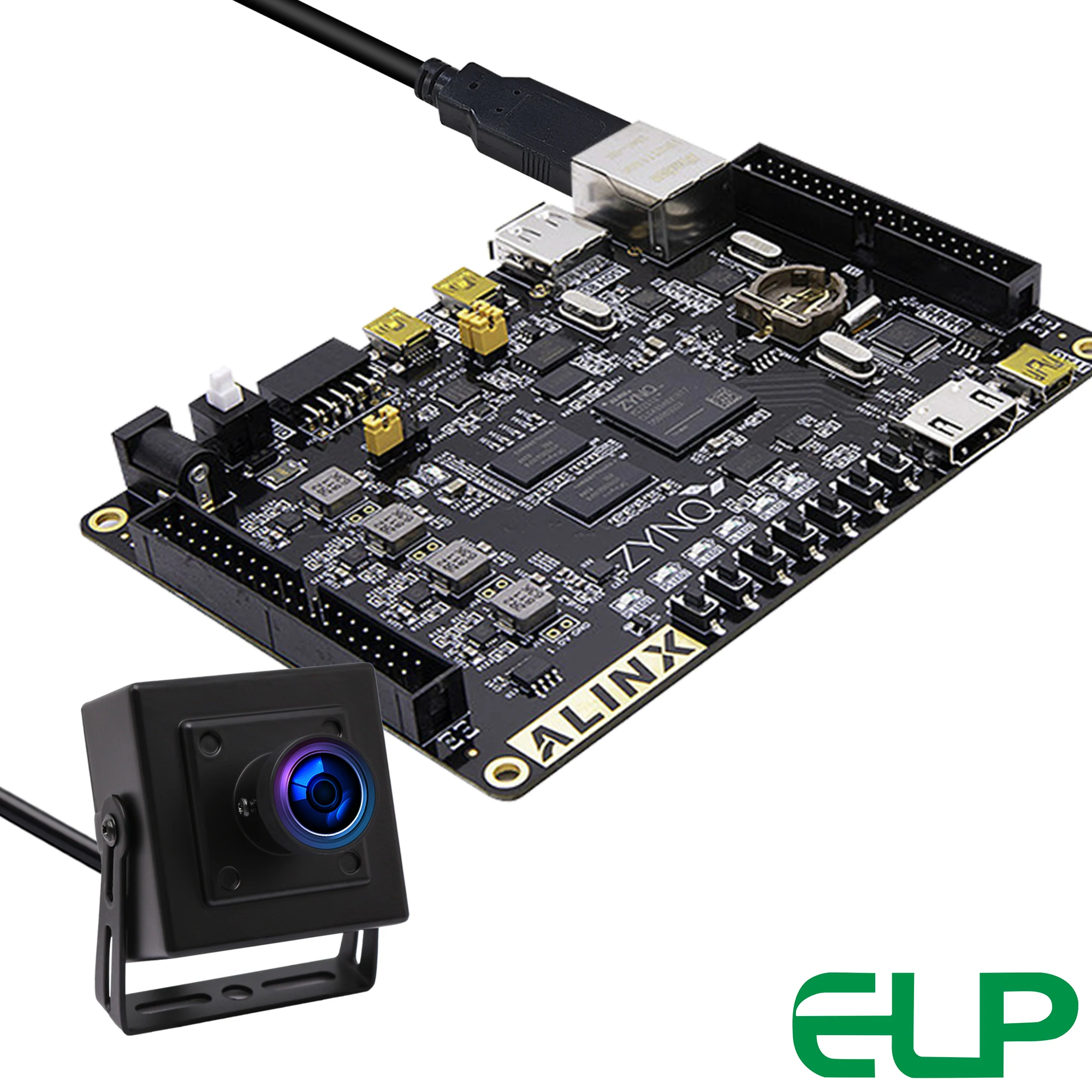

FOR Android Development Board:Support Android development board.

Well used for many applications, ATM machine, Vending Machine, Industrial camera, simple security system…

ELP USB camera
